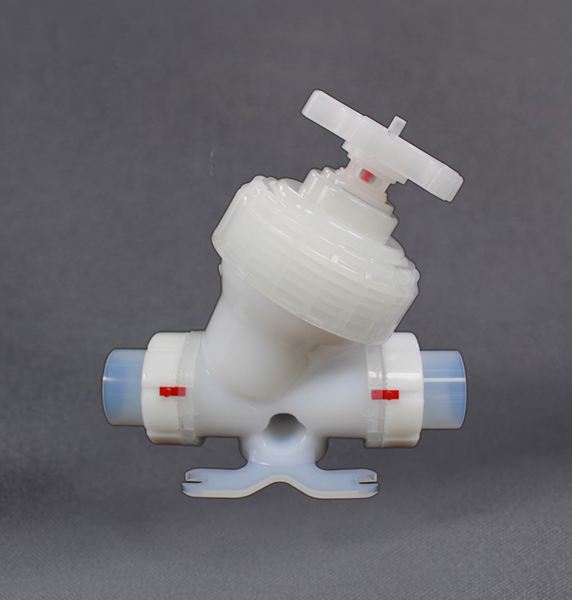

FURON®
HGVM VALVE


2-WAY MANUAL
2" ORIFICE

Furon HGVM Manual Valves offer a reliable means of handling large volumes of aggressive or ultra-pure chemistries. Engineered from virgin PTFE, injection molded PFA and other engineered thermoplastics, Furon HGVM valves offer the highest Cv flow factors of any fluoropolymer valve of its size. Our patented PTFE rolling diaphragm is ideal for use in high back pressure conditions, which are commonly found in Bulk Chemical Delivery Systems. Inline fluid ports and a fully swept internal flow path support maximum flow efficiency. The manually-actuated version features a large, ergonomically designed adjustment knob for ease of operation while wearing cleanroom gloves. They also feature our time-proven O-ring Free Union end connections, simplifying installation and eliminating the potential for elastomeric contamination and offer extra protection against chemical leakage, which provides a secondary sealing surface and locking design feature.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1

Item #

Flow Factor (Cv)

End Connection Type

Orifice

End Connection Size

Actuation

HGVM2-73232-MT N/A 52 N/A FuseBond™ N/A 2 in N/A 2 in50 mm N/A Multi-Turn
HGVM2-73224-MT N/A 52 N/A FuseBond™ N/A 2 in N/A 1-1/2 in40 mm N/A Multi-Turn
